"TWIN CLIP SYSTEM"

INSTALLATION GUIDELINES "TWIN CLIP" SUSPENSION SYSTEM

Suspension concealed system on TWIN LOCK main runner fireproof main runner T mm.24xh38x3600 with slots for hangers with metal snap adjustment type TWIN CLIP clip-in concealed panels systems mm.600x600 type Q6060 CLIP-IN

PERFECT AND EASY INSTALLATION:

• Elimination and removal from the oldest system of the cheap low quality steel pipes, corrosive, not fireproof, curved and without CE European Test Certification, very difficult to be complanarity and needfull of coupling joint connectors, difficult to purchase in the market. Expensive installation.
• Substitutive replace with the newest "TWIN CLIP" concealed system with rigid main runner fireproof T section mm. 24xH38x3600 with corrosionproof capping and slots for suspension hangers and click connection without any connector coupling joints and with metal adjustment snap type "TWIN CLIP" to clip directly on the Q6060 panels.
• Perfect complanarity, easy and fast installation.
• Easy to remove - Low cost of installations.

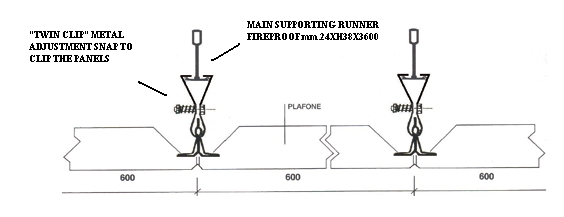

The panels mm.600x600 clip-in concealed system are suspended from a metal adjustment snap type "TWIN CLIP" clip on the main supporting runner fireproof T section mm.24xH38x3600 with aluminium prepainted capping corrosioproof complete of punching slots for suspension hangers each mm.600. The "TWIN CLIP" concealed suspension system warrant the perfect and quick installation alternatives of the old very difficult system of the steel pipes.

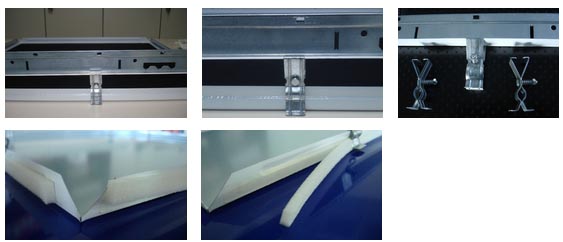

GALLERY:
